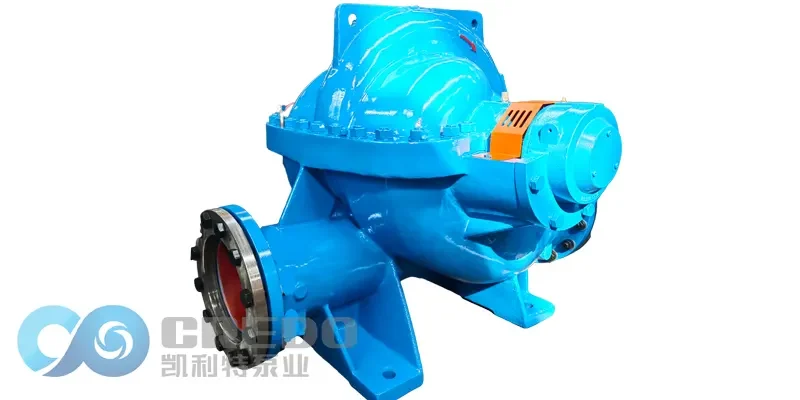

Split Case Pump Vibration: Operation, Reliability, Maintenance .

Vibration in a split case pump is a critical factor that directly impacts pump operation, reliability, and maintenance. Understanding the causes, effects, and mitigation strategies is essential for ensuring long-term performance and minimizing downtime.

1. Understanding Split Case Pump Vibration

The rotating shaft (rotor) of a split case pump generates vibrations that are transmitted to the pump body, connected piping, and adjacent equipment. Vibration amplitude typically varies with shaft rotational speed. At critical speed, resonance may occur, significantly amplifying vibration levels.

#	Topic	Description
1	Source of Vibration	The rotating shaft (rotor) generates vibrations transmitted to pump body, piping, and nearby equipment. Amplitude varies with rotational speed; resonance at critical speed amplifies vibration.
2	Vibration Types	Free vibration: Naturally decays over time.Forced vibration: Caused by unbalance or misalignment; can persist or grow if unchecked.
3	Impacts of Excessive Vibration	Noise, operational disruption, reduced reliability, decreased efficiency, potential safety hazards.

2. Common Causes of Split Case Pump Vibration

#	Cause	Description / Effect
1	Rotor Unbalance	Unbalanced impellers or rotors generate radial forces, reducing bearing life and affecting pump performance.
2	Shaft Misalignment	Centerlines of coupled shafts do not match.Radial misalignment: shafts offset but parallel.Angular misalignment: shafts intersect at an angle.Causes cyclical forces, bending moments, and vibration peaks (often at 2X shaft frequency).
3	Resonance	Occurs when excitation frequency matches the pump system’s natural frequency, causing dangerously high vibrations.Critical for VSD motors and steam turbine-driven pumps.

3. Effects of Vibration on Pump Performance

Effect	Description
Bearing, Seal, and Coupling Wear	Accelerated wear due to repeated vibration.
Structural Fatigue	Pump casing and connected piping can develop cracks or failures.
Reduced Efficiency	Operational efficiency decreases; maintenance costs increase.
Potential Catastrophic Failures	Ignored vibration may lead to severe system damage.

4. Mitigation and Maintenance Strategies

#	Strategy	Description
1	Rotor Balancing	Dynamic or static balancing ensures uniform mass distribution along the rotor, minimizing vibration.
2	Precision Shaft Alignment	Accurate alignment of coupled shafts reduces bending moments and cyclic loads. Use laser tools or dial indicators.
3	System Design & Installation	Proper pump selection, installation, and damping mechanisms reduce external excitation forces.
4	Continuous Vibration Monitoring	Use sensors and predictive maintenance software to detect early signs of issues for proactive corrective actions.
5	Resonance Prevention	Evaluate natural frequencies and mode shapes; compare with excitation frequencies. Apply balancing, damping, or stiffening as needed.

5. Conclusion

Vibration management is crucial for split case pump reliability and operational efficiency. By understanding the causes of vibration, monitoring system behavior, and applying proper balancing, alignment, and maintenance practices, operators can:

Extend pump lifespan

Reduce unplanned downtime

Maintain safe and efficient operation

Regular monitoring, expert maintenance, and proactive corrective measures ensure your split case pump system operates reliably under all conditions.
