Causes of Vibration in Vertical Turbine Pumps: Analysis and Solutions

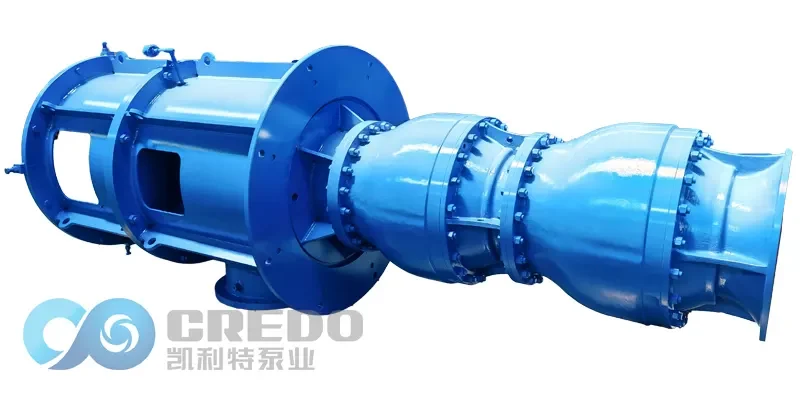

Vibration in vertical turbine pumps can significantly affect performance, lifespan, and operational safety. Understanding the root causes of these vibrations is essential for effective maintenance and optimization. This article examines the main causes of vibration—installation issues, shaft whirl, overload, turbulent flow, torsional vibration, and mutual pump interference—and provides practical mitigation strategies.
1. Installation and Assembly Deviations
Improper installation can lead to significant vibrations. Key factors include pump body level, thrust pad alignment, and lift pipe verticality. Proper installation and precise alignment are critical to minimizing vibration.
| Factor | Description | Tolerance / Notes | Effect on Vibration |
| Levelness and Verticality | Pump body level, thrust pad alignment, lift pipe verticality (26m, suspended) | Vertical deviation ≤ 2mm; vertical & horizontal error 0.05/1000mm | Excessive deviation → shaking; overly rigid alignment → alternating stress, pipe risk |
| Impeller and Clearance | Pump head impeller static balance ≤ 100g; clearance 8-12mm | Proper serial clearance post-assembly | Incorrect clearances → major source of vibration |
| Installation & Alignment | Proper installation and precise alignment | N/A | Critical to minimizing vibration |
2. Drive Shaft Whirl
Shaft whirl, a self-excited vibration, occurs along the rotating shaft and is caused by shaft-bearing interactions and insufficient lubrication.
| Cause | Description | Notes / Mechanism | Effect on Vibration |
| Insufficient Lubrication | Long drive shaft with 0.20-0.30mm clearance | Broken or blocked water supply pipe worsens issue | Shaft shakes, increases vibration |
| Shaft-Bearing Interaction | Tangential forces when shaft contacts rubber bearing | Rolling motion along bearing wall | Can burn out rubber bearing if prolonged |
| Maintenance Requirement | Regular lubrication system check | N/A | Prevents whirl-induced vibrations |
3. Overload-Induced Vibration
Overloading affects the thrust pad, which has an allowable load of 18MPa (tin-based Babbitt alloy).
| Cause | Description | Notes / Mechanism | Effect on Vibration |
| Boundary Lubrication at Startup | Thrust pad operates under boundary lubrication | N/A | Increased wear, higher vibration risk |
| Valve Malfunctions | Valves fail to open fully | Silt buildup or human error | Exhaust delays → intense vibrations, rapid thrust pad burnout |
| Mitigation | Proper valve operation and timely exhaust | N/A | Reduces overload-related vibration |
4. Turbulent Vibration at the Pump Outlet
Turbulent flow can generate irregular pulsations and amplify vibrations.
| Cause | Description | Notes / Mechanism | Mitigation |
| Valve Blockages | Blocked or partially open valves | Increases local resistance, momentum & pressure | Fully open valves; proper spool size and support |
| Frequency Resonance | Turbulent flow frequency matches system natural frequency | Energy absorption amplifies vibration | Ensure system avoids resonance |
5. Torsional Vibration
Torsional vibration arises from interactions between the long drive shaft and motor via elastic coupling.
| Cause | Description | Notes / Mechanism | Mitigation |
| Superposition of Vibrations | Multiple vibrations combine with different angular frequencies | Complex torsional vibration with 2 DOF | Adjust lubrication and monitor vibration |
| Impact on Thrust Pads | Vibrations mainly damage thrust pads | Upgrade lubricating oil from 68# to 100# | Supports hydraulic film formation and reduces vibration |
6. Mutual Interference Between Pumps on the Same Beam
Adjacent pumps can affect each other when installed on a shared frame.
| Factor | Description | Notes / Mechanism | Mitigation |
| Coupled Vibrations | Excessive vibration in one pump affects adjacent pumps | Even normal pump can destabilize due to nearby pump/motor vibration (amplitude up to 0.15mm) | Isolate or balance adjacent pumps |
| Detection Challenges | Subtle interference between pump units | Requires careful monitoring | Regular observation and monitoring to detect interference |
Conclusion
Vibration in vertical turbine pumps can result from installation errors, shaft whirl, overloading, turbulent flow, torsional vibration, or mutual pump interference. Addressing these issues through precise installation, regular maintenance, proper valve operation, lubrication improvements, and careful monitoring of adjacent pumps can enhance reliability, reduce wear, and extend pump life. Understanding and mitigating these vibration causes ensures optimal performance even in demanding applications.
